Savannah River National Laboratory
Passive High Temp Sealings Device
Scientists at the Savannah River National Laboratory (SRNL) have designed a sealing device to act as a high-temperature shutoff valve for pipes and ducts. This passive device can be used to stop the flow of gas or liquid in conditions of sudden overheating.
Quickly stops flow process

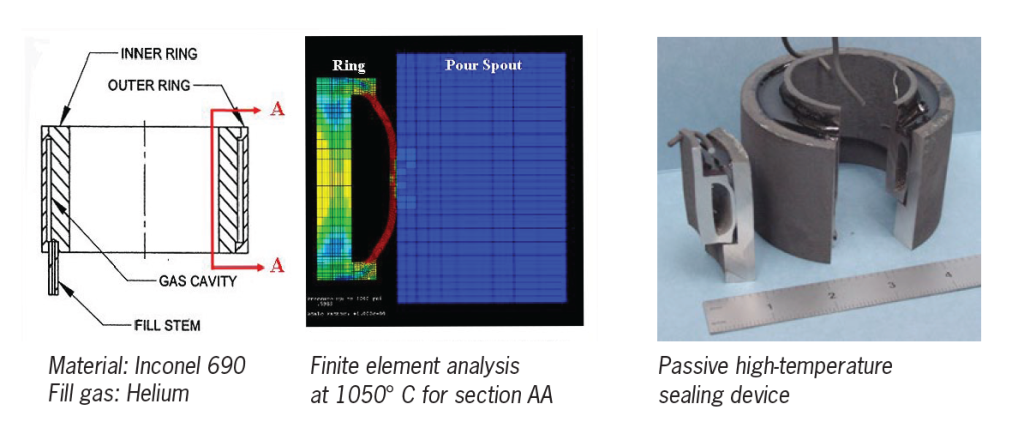

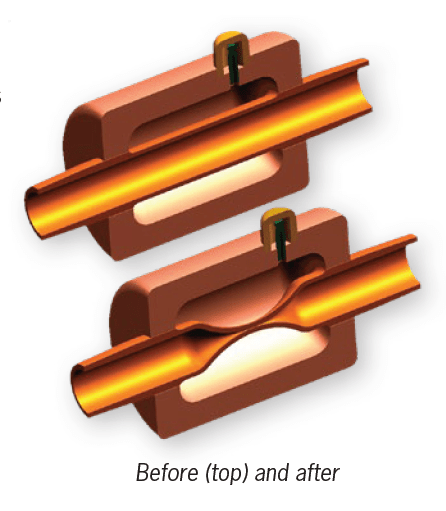

The device is an annular ring that can be slipped over the outside of the pipe (or built into a flanged spool piece). The cavity inside the device is filled with a gas, liquid or even a solid. When exposed to an elevated temperature, the material in the cavity expands, providing sufficient inward force to collapse the thinner process pipe wall which stops flow within the pipe.
In configuration 2, the ring can be installed above the stem of a gate valve. In this case, the ring has a thinner lower wall and a thicker upper wall. When heated, the expanding lower wall of the ring will force the stem downward to push the gate into the pipe.
At a glance
- Reduced concerns of sample flammability
- Permits molecular identification
- Improved detector sensitivity
- Permits analysis in humid environments
- Cost effective
- U. S. Patent 9,007,576
Seals process lines
To use as a seal, the ring can be inserted inside a pipe with the thinner wall in contact with the inner wall of the pipe. High temperature will cause the thinner wall to expand outward, providing a tight seal against the pipe. The expanding ring wall will accommodate irregularities in the pipe wall.
Adaptable to varying process parameters
Choice of material for constructing the ring would depend on specific process parameters, such as corrosivity, activation temperature, and elevated temperature mechanical properties of the valve or process system. The cavity may be filled with a gas, such as nitrogen, with a volatile non-corrosive liquid, or with a volatile solid.
Partnering Opportunities
SRNL invites interested companies with proven capabilities in this area of expertise to develop commercial applications for this process or product under a cooperative research and development agreement or licensing agreement. Interested companies will be requested to submit a business plan setting forth company qualifications, strategies, activities, and milestones for commercializing this invention. Qualifications should include past experience at bringing similar products to market, reasonable schedule for product launch, sufficient manufacturing capacity, established distribution networks, and evidence of sufficient financial resources for product development and launch.
